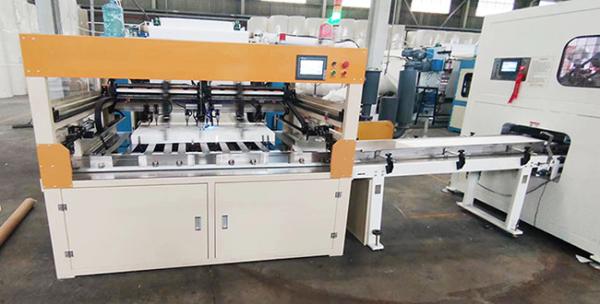

Wall Mounted Tissue Paper logs Transfer and Tissue Paper Cutting Machine

Wall Mounted Tissue Paper logs Transfer and Tissue Paper Cutting Machine

Description

Wall Mounted Tissue Paper logs Transfer Unit and Tissue Paper Cutting Machine is developed for customers targeting high production capacity and excellent wall-mounted bag tissue paper. These two machines connect the tissue paper interfolder and automatic packing machine to make an automatic wall-mounted bag tissue paper production line.

It cuts with 1mm tolerance and automatic trimming. PLC and servo motors control ensures the cutting precision; All covered safe guarding and safe switches ensures the operation safety. Compact design and easy adjustment help operators to have full control of functionality and production of the machine.

Technical Specification

Wall Mounted Tissue Paper logs Transfer Unit
Name	Technical parameters
1. Machine Size	(L x W x H): 2832 x 1554 x 1698mm;
2. Machine weight	About 1000 Kg
3. Paper log length	1000mm-1350mm(6lines) 1300mm-1550mm(7lines) 1550mm-1650mm(8lines)
4. Paper log separating thickness	100-420mm
5.Paper log folded width	70-110mm

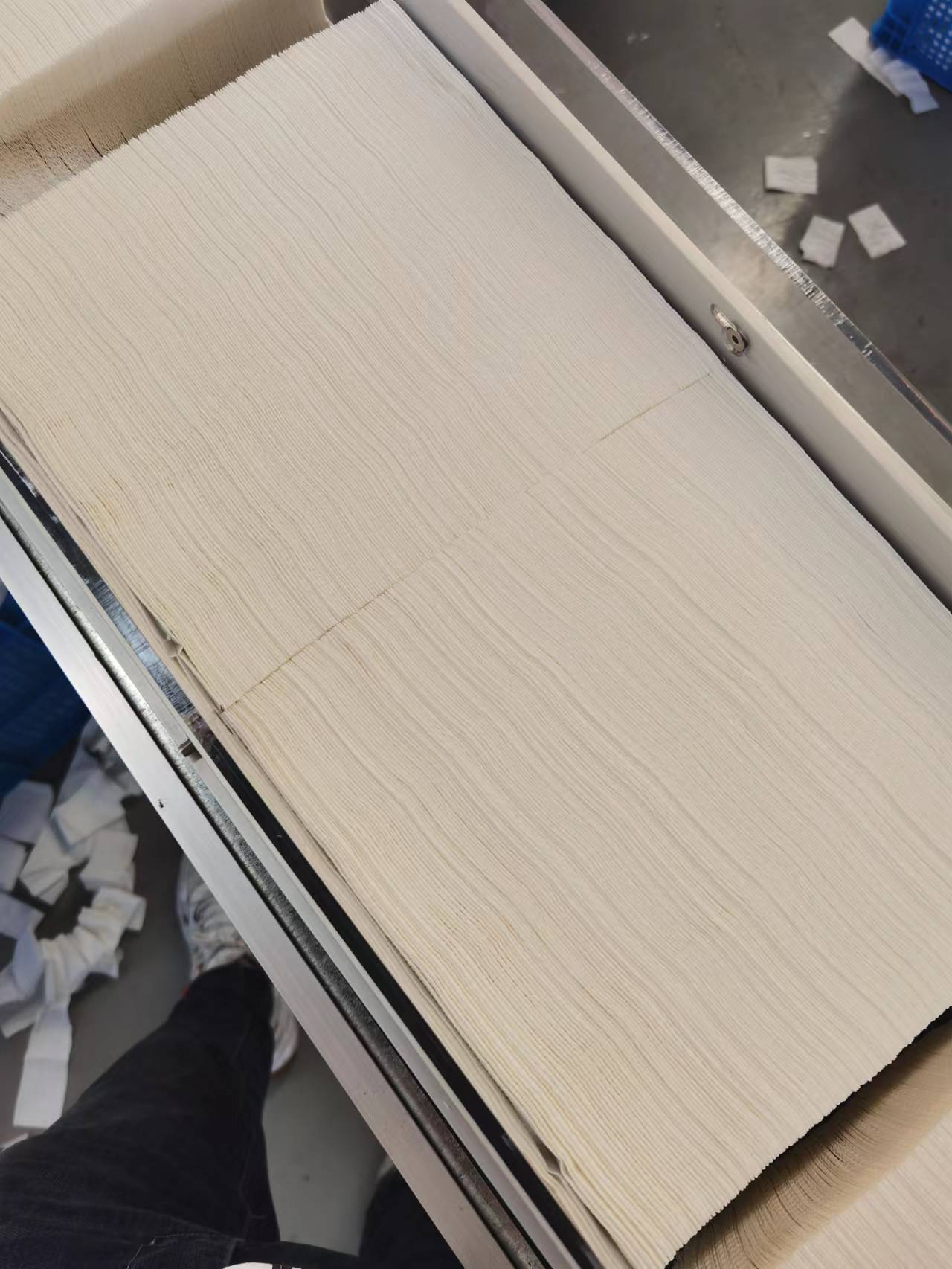

6.Counting mode	Ink spraying, Spraying covers 1 piece of paper
7.Stable production speed	5-7 logs per min.
8. Separating sheets tolerance	±1mm
9. Compressed air	≥0.6Mpa
10. Compressed air assumption	0.2m³/min
11.Power needed	220V±10V 50HZ 3.1KW
12.Noise	Less than 60dB
13.Machine Structure	Welded frame and aluminum profile
14. Mechanical transmission	5 Servos. Servo 0.75KW 2 sets; Servo 0.4KW 3sets; Step motor 1set; Module+Sliding block, Rail cylinder push.
15.Paper Log pushing mode	Servo motor pushing(constant and synchronous push by servo ensuring the sheets number tolerance
16. Control PLC, Servos, touch screen	Delta from Taiwan
17. Cylinder and accessories	Airtac brand
18. Features and usage	It is automatic transfer unit between the tissue paper interfolder and log saw machine. It reduces the labor intensity, save the labor force and increase the production efficiency; also it will avoid the secondary contamination caused by manual paper logs transfer.

Tissue Paper Cutting Machine
Production speed	Stable production speed: 60 cuts/min;
Knife grinding	Automatic knife grinding; time can be set.
Driving for paper feeding	Servo motor driving, Siemens brand.
Paper pressing	Left and right paper pressing structure with excellent anti-static flat belt; Cutting width is adjustable by leading screw, dividing ruler display;
Cutting range	N- fold hand towel(with or without sleeve packaging); Length: ＜2000mm Width: 100mm- 300mm； Height:0-100mm；
Cutting mode	Cutting into equal sections, Automatic head and tail trimming(Min 2cm each side);
Control system	PLC program control, Siemens brand; Inverter is Siemens brand; Touch screen is Siemens brand;
Drive system	Full servo drive; servo motor brand is Siemens. Drive link by excellent anti-static flat belt;
Protective device	Automatic fault alarm; IO system display and trouble shooting; Equipment safety cover and built-in iron mesh, Organic glass for outside observation;
Power needed	3 phase 5 wire,AC380V 50Hz 7.7KW;
Air pressure	0.5-0.6Mpa(buyer prepares);
Air consumption	120-160L/min;
Machine noise	≤80dB；
Machine size	Main machine:About 2010mm×1500×1972mm(L×W×H)； Conveyor unit: About 2600mm×400×1000mm(L×W×H)；
Machine weight	2000KG
Painting	Baking paint for metal, machine drive in red color, main machine in creamy-white color, safety cover in creamy-white color;

After Sale Services

Spare Parts

YouYuan provides around-the-clock parts support to keep your business moving.

24/7 breakdown support
2,600+ part numbers stocked in our warehouse
Expediting for non-stock parts requests
Professional team members dedicated to supporting your parts needs

Installation

We're here to get you started on the right foot.

Complete installation and start-up support
Start-up and calibration support
Training
