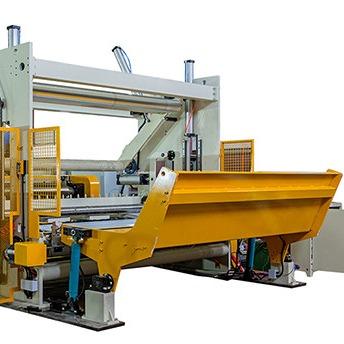

    High Speed Tissue Paper Slitter Rewinder Machine Pneumatic Slitting

    Ask Lasest Price
    Brand Name : YouYuan
    Model Number : YY-FQB800
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 10 Sets Per Month
    Delivery Time : 60 Days
    • Product Details
    • Company Profile

    High Speed Tissue Paper Slitter Rewinder Machine Pneumatic Slitting

    High Speed Automatic Tissue Paper Slitter Rewinder Machine Pneumatic Slitting


    Description


    YY-FQB800 Tissue Paper Slitter Rewinder Machine is developed to slit and rewind the big tissue paper rolls from paper making machines into smaller paper rolls for different kinds of tissue paper converting. With this machine, you can easily slit the big tissue paper rolls you buy or you make into smaller tissue paper rolls accoding to your converting requirements. It is a bridge between tissue paper making and tissue paper converting.Our Tissue Paper Slitter Rewinder Machine uses the international advanced pneumatic slitting knives to ensure very smooth slitting ends.


    Technical Specification


    Nr.DescriptionData
    1Machine nameYY-FQB800 Tissue Paper Slitter Rewinder Machine
    1.1Design speed900m/min
    1.2Operation speed800m/min
    1.3Roll balancing speed1000 m/min
    1.4Maximum jumbo width2900mm
    1.5Jumbo diameter≤¢2500mm
    1.6Minimum slitting width180mm
    1.7Maximum winding diameter¢1500mm
    1.8Operation basis weight13-80g/High Speed Tissue Paper Slitter Rewinder Machine Pneumatic Slitting

    Winder


    ItemDescriptionData
    1drum roll2 pcs
    1.1drum roll width2950mm
    1.2fomer drum roll materialseamless tube
    1.3fomer drum roll surfaceSand blasting&chrome
    1.4grooveNo
    1.5back drum roll materialseamless tube
    1.6back drum roll surfacesand blasting treatment&chrome
    1.7goorveno
    2spreader roll1pc
    2.1spreader roll face length2950mm
    2.2surface materialrubber
    2.3driveV-belt
    3rider roll1pc
    3.1rider roll face length2950
    3.2rider roll materialaluminum tube
    3.3rider roll pressure controlPneumatic
    4core shaft2 pcs
    4.1diameter core shaft3 inches(76mm paper core)
    4.2structure core shaftexpansion shaft
    5core chuck1 set
    5.1core chuck pressure controlPneumatic
    5.2core chuck up&downPneumatic contorl synchonize
    6Reel control1 set
    6.1Control interface10.4inch touch panel
    6.2counting waylength or diameter
    6.3tension controlelectric
    6.4density controldrum roll speed and rider roll pressure
    6.5auto cut off systemautomatic
    6.6paper core auto loadYes
    6.7blowyes

    Slitting System



    Nr.DescriptionData
    1slitter type

    top knife :pneumactic knife.

    bottom knife is disc.

    1.1minimum slitting width180mm
    1.2maximum slitting width2900mm
    1.3bottom knife drivesynchronize belt
    1.4top knife diameter150
    1.5top knife quantity12 sets
    1.6bottom knife diameter260
    1.7bottom knife quantity50sets
    1.8bottom knife shaft1pc

    1.9


    bottom knife shaft materialseamless tube
    1.10top knife lubricatinoyes
    2spreader roll1pc
    2.1spreader roll face length2950mm
    2.2surface materialrubber
    2.3driveV-belt
    3Paper guide roll1 pc
    3.1paper guide roll face length2950
    3.2paper guide roll grooveyes

    Unwinders



    NrDescriptionData
    1unwind quantity2 group(the picture is 4 group)
    1.1maximum jumbo width2900mm
    1.2minimum jumbo weight3T with reel spool
    1.3maximum jumbo diameter2500mm
    2drive belt quantity2 pcs
    2.1belt width250mm
    2.2drive wayindependent drive motor
    3unwind materialsteel plate structure
    3.1empty spool kick off deviceyes
    3.2jumbo spool locking devicepneumatic
    3.3jumbo alignmentelectrical
    4brakedisc braking
    4.1every group brake qty1 set
    4.2drivepneumatic

    Trim System


    ItemDescriptionData
    1collecting tank1 pc
    1.1trim pressingNo
    2trim nozzle movableno
    2.1trim nozzle materialstainless steel
    2.2static eliminatorno
    3trim blowerhigh pressure centrifugal fan
    3.1blower power11KW

    6. UNLOAD deck

    itemdescriptiondata
    1unload deck1set/hydraulic

    Our Production Process and Delivery to Customer


    We have our own CNC to do parts machining, and then shot blasting, we do baking paint for all the parts. Next we start the assembly, when the machines are finished, we will do the commissioning and test running. If customer will not come to our factory to check and approve, we will send machine photos and videos to customer before packaging and shipment.


    After Sale Services


    Spare Parts

    YouYuan provides around-the-clock parts support to keep your business moving.

    • 24/7 breakdown support
    • 2,600+ part numbers stocked in our warehouse
    • Expediting for non-stock parts requests
    • Professional team members dedicated to supporting your parts needs

    Installation

    We're here to get you started on the right foot.

    • Complete installation and start-up support

    • Start-up and calibration support

    • Training
