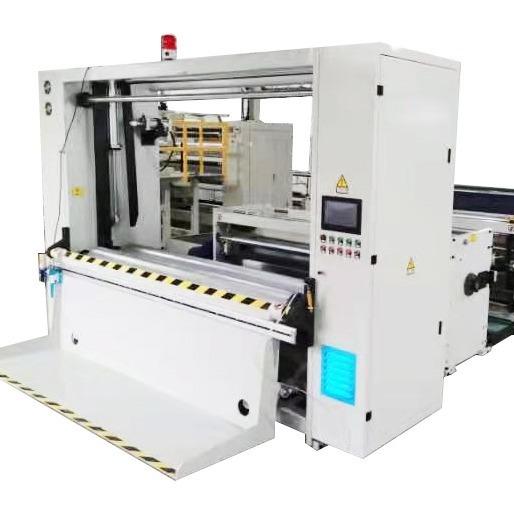

Air Shaft Winding Non Woven Coating Slitter Rewinder Machine 180
Meters Per Min
Description
Non woven coating slitter rewinder machine is developed to coat, slit, rewind the non-woven. It has automatic
drying and trimming functions. The finished coated rolls can be raw
material of other production.
Independent motor control, synchronous toothed pulley drive,
driving speed is precise and stable;
Air expansion shaft winding, adjustable reduction motor controls winding tightness.
Pneumatic unloading finished rolls
Technical Specification
| YY-1000 Nonwoven Coating Slitter Rewinder |
| 1)Size: Max:φ800mmxW1000mm 2) GSM；20g/㎡ pp non-woven; 3) Jumbo roll core diameter: 76mm.
|
| 1)One unwinding stand, independent motor and automatic magnetic
tension control; 2) Wide belt ,pneumatic control 3) Jumbo roll loading: Pneumatic 4) Manual adjusting device for jumbo roll shaft; 5) One piece of jumbo roll shaft
|
| 1)Soaking and extrusion, independent motor control(the raw material
was wet through); 2) Pull rod wall plate structure, wall plate thickness is 50mm,
stable running and precise installation; 3) Rubber to rubber extrusion or steel to rubber extrusion; 4) External supply liquid circulation device. 5) Stainless steel liquid tank with pneumatic lifting device, easy
to clean and maintain; 6) Spraying system:by pneumatic diaphragm pump 7) Coating liquid: Softener
|
| 1)Independent motor control, synchronous toothed pulley drive,
driving speed is precise and stable; 2) The machine adopts aluminum alloy conduit;
|
| 1)Double rewinding roller reeling, air expansion shaft positioning; 2) Adjustable reduction motor controls winding tightness; 3) Winding shaft is air expansion shaft(2 pcs) 4) Slitting: press type slitting cutter, minimum slitting width is
100mm, 8 knives. 5) Trimming 6)Pneumatic unloading finished rolls
|
| Three roll oil heating and drying device; |
| 7.Product | 1) winding roll diameter: φ800mm. 2) core diameter:φ76 mm.
|
| 1)180meters per min(depends on drying effect) |
Our Production Process and Delivery to Customer
We have our own CNC to do parts machining, and then shot blasting,
we do baking paint for all the parts. Next we start the assembly,
when the machines are finished, we will do the commissioning and
test running. If customer will not come to our factory to check and
approve, we will send machine photos and videos to customer for
confirmation and approval before packaging and shipment.
FAQ
1. Why choose YouYuan as the Non-woven coating slitter rewinder
machine supplier?
Because we are professional Non-woven coating slitter rewinder machine manufacturer with more than 15 years experience. And we have a
dedicated team for your questions before sales and after sales
process. We can give you a turn-key project solution for Non-woven coating slitter rewinder machine
2. Will you provide spare parts for the machines we buy from you?
Yes. we will provide you some consumable spare parts free of charge
for about one year, and we will ship the consumable parts to you
together with the machines. In the future, you can still buy the
parts from us.
3. Where is your factory located? Can we visit your factory?
Our factory is located at the Pengzhou Industrial Park, Chengdu,
China. We welcome you to visit our factory and see our machines any
time.
After Sale Services
Spare Parts
YouYuan provides around-the-clock parts support to keep your napkin
machines running.
- 24/7 breakdown support
- 2,600+ part numbers stocked in our warehouse
- Immediate response for non-stock parts requests
- Professional team members dedicated to supporting your spare parts
needs
Installation
We're here to get you started on the right foot.
Complete installation and start-up support
Start-up and calibration support
Staff training
