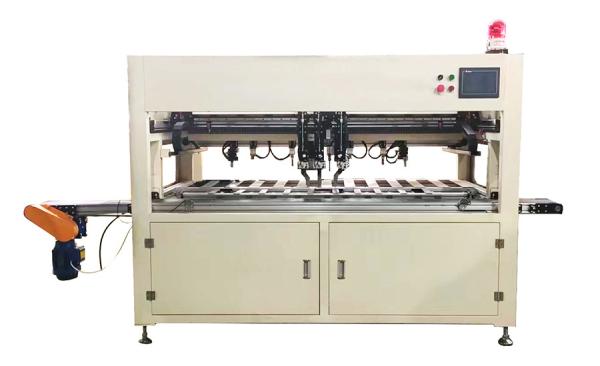

Automatic Facial Tissue Converting Machine Tissue Paper Logs Transfer 12 Logs
Description
Automatic Transfer Facial Tissue Converting Machine is developed to connect facial tissue interfolder and log saw
cutting machine to make an automatic facial tissue line. It will
save labor, increase production efficiency and enhance your tissue
products hygienic degree and your company image.
Compact design and easy adjustment help operators to have full
control of functionality and production of the machine.
Technical Specification
| FZJ-1550 Automatic Transfer Unit |
| Name | Technical parameters |
1. Machine Size | (L x W x H): 3100 x 1200 x 1600mm; |
| 2. Paper log length | 1250-2000mm(Other sizes please order, we will customize) |
| 3.Stable production speed | 10-12logs per min. |
| 4. Counting | (1)Ink spraying (setting the counting sheets on the touch screen,
while machine running, photocell detecting) (2)Fluorescentic ink (3)counting tolerance: 1sheet. (4) Distance sensing (If sometimes folding is not very smooth and
neat, distance sensing will have several sheets tolerance). |
| 5. Tissue stack height(jaw opening min and max) | 30-150mm |
| 6.Tissue stack width(the depth of the jaws) | 70-150mm |
| 7.Compressed air | ≥0.6Mpa |
| 8.Power needed | 220V±10V 50HZ 3KW |
| 9.Noise | Less than 60Db |
| 10. Control part | PLC,Servo:XINJIE, Siemens Touch Screen: Weinview Pneumatic cylinders and units: Airtac |
| 11. Features and usage | It is automatic transfer unit between the interfolder and log saw.
It reduces the labor intensity, save the labor force and increase
the production efficiency; also it will avoid the secondary
contamination caused by manual transfer. |
FAQ
1. Why choose YouYuan as the tissue converting machine supplier?
Because we are professional tissue converting machine manufacturer
with more than 5 years experience. And we have a dedicated team for
your questions before sales and after sales process. We can give
you a turn-key project solution for tissue converting machine(facial tissue logs automatic transfer).
2. Will you provide spare parts for the machines we buy from you?
Yes. we will provide you some consumable spare parts free of charge
for about one year, and we will ship the consumable parts to you
together with the machines. In the future, you can still buy the
parts from us.
3. Where is your factory located? Can we visit your factory?
Our factory is located at the Pengzhou Industrial Park, Chengdu,
China. We welcome you to visit our factory and see our machines any
time.
After Sale Services
Spare Parts
YouYuan provides around-the-clock parts support to keep your napkin
machines running.
- 24/7 breakdown support
- 2,600+ part numbers stocked in our warehouse
- Immediate response for non-stock parts requests
- Professional team members dedicated to supporting your spare parts
needs
Installation
We're here to get you started on the right foot.
Complete installation and start-up support
Start-up and calibration support
Staff training
